Engineering Precision: Featured Export Window Framing Systems
Explore our flagship CE-certified window frame assemblies, thermally broken aluminum profiles, and uPVC fenestration lines custom-extruded for global multi-family, hospitality, and residential contracts.

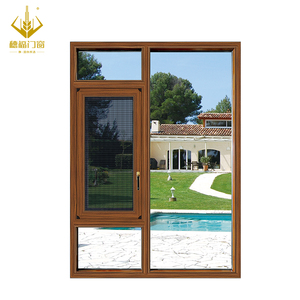

Distressed Finish French Style Villa Window Casement Side Hung with Double Glazed Divided Lites
- Style: Rustic French Side-Hung
- Glass: Double Glazed / Divided Lites
- Certification: CE / EN 14351-1

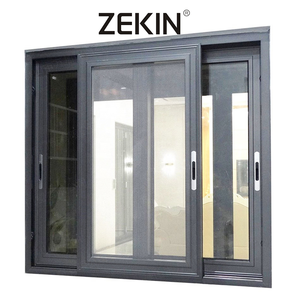

ZEKIN Sliding Windows Thermal Break Aluminum Frame with Double Glazing Low-E Glass
- Profile: Thermal Break 6063-T5
- Thermal Insulation: U-Factor ≤ 1.4
- Application: Balcony & Patio Units

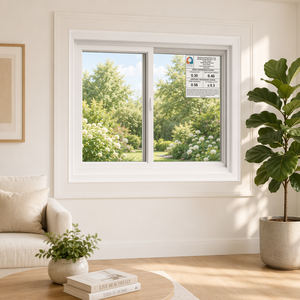

CHANGYI French Style PVC Window & Door Profile with Multiple Panes Insulating Glass
- Material: UV-Stabilized uPVC
- Design: French Multi-Pane Sliding
- Feature: High Acoustic Damping

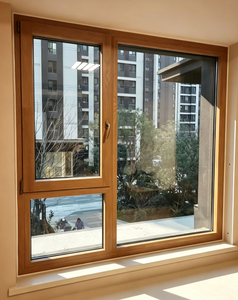

European High Energy Saving Aluminum Wood Window Frames Triple Glazed for Hotels
- Composite: Alu-Clad Solid Wood
- Glazing: Triple Low-E Argon Filled
- Target: Luxury Commercial & Hotel

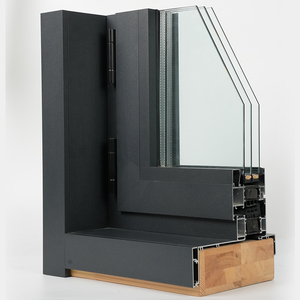

Factory Custom Size Durable Extrusion Aluminum Profiles Frame for Sliding/Awning Systems
- Alloy Grade: 6000 Series T5/T6
- Versatility: Awning, Casement & Folding
- Surface: Powder Coated / Anodized

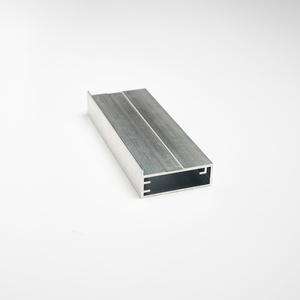

Italy Brand Base System Hinged Modern Look Aluminum Window Frames with Architectural Glass
- Profile Depth: Italian Standard Base
- Hardware: Concealed Hinges
- Aesthetic: Minimalist Slim Sightlines

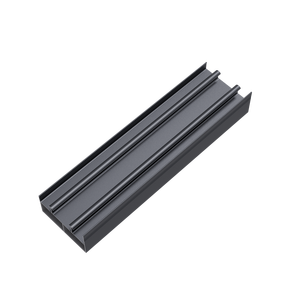

Wholesale Custom Finish 6000 Series Alloy Extruded Aluminum Frame with Cutting & Welding
- Fabrication: Precision CNC & Mitering
- Finish: Fluorocarbon (PVDF) Coated
- Structural Load: High Wind Rating

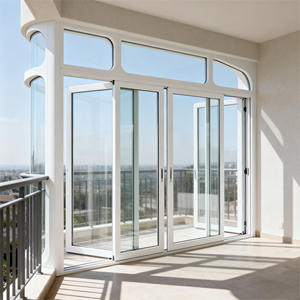

Customized High-Quality PVC Extrusion Window & Door Frame Profiles for Commercial Contracts
- Service: Custom Lengths & Milling
- Thermal Performance: Multi-Chamber
- Standards: CE / ISO 9001 Factory
Engineering E-E-A-T: End-to-End Fenestration Accountability Since 1999
In high-density commercial, multi-family podium, and wrap construction, architectural performance failures rarely originate from individual component defects. Rather, over 85% of jobsite window leaks and energy compliance failures occur in the operational gap between separate suppliers and installation subcontractors. As a premier CE-certified window frame factory and international exporter, our integrated model—refined alongside industry benchmarks like Walker Windows—completely eliminates this liability.
Operating as both an advanced manufacturing facility and a fully supervised installation contractor, we control the technical lifecycle of every window and patio door opening from initial submittal to final post-occupancy validation:
Pre-Construction Planning & Submittals
Architectural plan review, opening take-offs, Title 24 & EN 14351-1 energy compliance matching, 3D shop drawings, and structural load calculations prior to extrusion.
Jobsite Mock-ups & Water Testing
Pre-installation field mock-ups coordinated with flashing manufacturers and 3rd-party testing agencies (ASTM E1105 / EN 1027 water penetration testing) before mass manufacturing.
Recessed Opening Flashing Mastery
Execution of complex recessed window conditions—widely recognized as construction's toughest weatherization detail—using proprietary sill pan and weather-resistive barrier (WRB) integration.
Having partnered with 7 of the Top 10 U.S. General Contractors listed by the National Multifamily Housing Council (NMHC) and earned a 75%+ repeat customer rate, our manufacturing plant delivers fully documented, audited fenestration packages ready for European Union, North American, and global architectural deployment.
Global Fenestration Procurement Trends (2025–2030)
The global construction landscape is undergoing a systemic shift driven by carbon-neutral building mandates, rising energy costs, and stringent international certification standards. B2B buyers, general contractors, and developers must navigate evolving procurement paradigms to safeguard project valuations.
1. Decarbonization & Environmental Product Declarations (EPD)
European Union directives (EPBD) and North American green building codes (LEED v4.1) now demand full lifecycle carbon accounting. Modern window frame procurement requires factory verification of recycled raw material content (e.g., using primary aluminum smelted via renewable hydropower or post-consumer uPVC regrind) accompanied by verified EPD documentation.
2. Transition to Polyamide Thermal Break Metallurgies
Standard non-thermal aluminum frames are virtually obsolete in Tier-1 commercial construction. Future-proof procurement centers around advanced polyamide (PA66-GF25) thermal barrier strips. By creating a physical disruption in thermal conduction between outer and inner aluminum profile chambers, modern frames achieve structural rigidity while dramatically reducing overall thermal transmittance ($U_w$).
3. Off-Site Modular Assembly & Unitized Glazing Packaging
With jobsite labor costs rising globally, procurement schedules are moving away from knock-down (KD) field assembly toward factory-assembled, unitized, and fully sealed fenestration packages. Factory-installed dual EPDM gaskets and machine-injected corner crimping ensure zero variance across thousands of window openings.
Advanced Technical Development Trends in Frame Metallurgy & Glazing
To achieve compliance with European Norm EN 14351-1 (the baseline standard for external pedestrian doorsets and windows without resistance to fire/smoke), frame engineers must optimize mechanical, thermal, and acoustic performance metrics.
| Performance Characteristic | CE Benchmark (EN Standards) | Advanced Engineering Profile Specs | Commercial Impact |
|---|---|---|---|
| Air Permeability | EN 12207 Class 4 (600 Pa) | Multi-chamber EPDM dual-compression sealing | Prevents micro-drafts & HVAC energy loss |
| Watertightness | EN 12208 Class E1050 (1050 Pa) | Recessed pressure-equalized drainage tracks | Eliminates rainwater ingress under hurricane loads |
| Resistance to Wind Load | EN 12210 Class C5 (2000 Pa) | Extruded 6063-T6 alloy with internal steel stiffeners | Ensures structural integrity on high-rise facades |
| Thermal Transmittance ($U_w$) | EN ISO 10077-2 ≤ 1.2 W/m²K | PA66-GF25 34mm Thermal Strips + Low-E Triple Glazing | Meets Passive House & Net-Zero energy codes |
| Acoustic Attenuation | EN ISO 717-1 $R_w$ ≥ 42 dB | Laminated acoustic PVB interlayers + Asymmetric glass | Attenuates urban traffic noise in residential complexes |
Innovative Alloy Formulations: 6063-T5 vs. 6061-T6 Aluminum
Our factory utilizes high-grade 6063-T5 and T6 extrusions engineered specifically for intricate architectural profiles. Aluminum alloy 6063 offers superior surface smoothness necessary for anodizing and architectural powder coating, while maintaining yield strength sufficient to resist severe wind forces without frame deflection.
Integration of Low-E and Smart Electrochromic Glazing
Modern frame extrusions are now designed with deeper glazing pockets (up to 48mm width) to accommodate triple-pane insulating glass units (IGUs) coated with microscopic double or triple silver Low-E layers. These units selectively reflect infrared thermal radiation while permitting maximum visible light transmission (VLT), significantly optimizing Solar Heat Gain Coefficients (SHGC).
Why Global Exporters & Developers Partner With Our Factory
Direct factory procurement eliminates middlemen markups while delivering direct engineering oversight to your construction site. Here is how our certified manufacturing process safeguards your project budget and schedule:
100% Audit-Ready CE & ISO Certification
Every shipment is accompanied by complete Factory Production Control (FPC) documentation, Declaration of Performance (DoP), and CE marking compliant with EU Regulation No 305/2011.
Custom OEM/ODM Extrusion & CNC Milling
Equipped with 5-axis CNC machining centers, our automated lines handle precise cutting, notch milling, drain hole routing, and corner welding for bespoke architectural blueprints.
Sequenced Logistics & Site Delivery
We package window units floor-by-floor in steel crates, minimizing jobsite sorting delays and preventing transit damage across international sea routes.
Frequently Asked Questions: B2B Window Frame Procurement
Key technical insights for architects, structural engineers, procurement managers, and commercial contractors.
CE Certification under standard EN 14351-1 verifies that the window and door assemblies meet strict European Union health, safety, and environmental protection requirements. Specifically, it mandates third-party laboratory verification of air tightness, water resistance, wind load capability, load-bearing capacity of safety devices, thermal transmittance ($U_w$), and dangerous substance emissions. Importing CE-marked profiles ensures compliance with international building codes across Europe, the Middle East, and worldwide.
Recessed window openings present the industry's highest risk for water intrusion. Our engineering team develops project-specific flashing sequences integrated directly with weather-resistive barriers (WRB). We provide pre-formed continuous sill pans, dual-seal corner boots, and back-bedding sealant channels. Crucially, we conduct full-scale jobsite mock-up water tests (ASTM E1105) alongside flashing manufacturers to validate and document the installation sequence before commencing full factory output.
Thermally broken aluminum utilizes extruded alloy (typically 6063-T5) connected by structural polyamide fiberglass strips (PA66-GF25), offering extremely high structural tensile strength suitable for expansive glass facades, high-rise wind loads, and modern slim sightlines. uPVC (unplasticized polyvinyl chloride) relies on multi-chambered vinyl extrusions often reinforced with internal steel channels; it offers exceptional native thermal insulation at a cost-effective price point, making it ideal for low-to-mid-rise residential and multi-family housing developments.
Our pre-construction division generates comprehensive submittal packages for architectural review. This includes 2D CAD cross-sections, 3D BIM/Revit models, profile structural calculation reports, finish samples (powder coating/anodizing), glass performance data sheets (SHGC, VLT, U-Factor), hardware specifications, and certified test reports demonstrating compliance with EN and AAMA standards.
By operating under a single accountable team model—as pioneered by leading contractors like Walker Windows—our factory manages extrusion, glazing assembly, delivery sequencing, and field supervision. If an issue arises during installation, there is no finger-pointing between separate material suppliers and installation sub-contractors. One point of contact controls engineering, field mock-ups, punch-list resolution, and post-occupancy warranty support.
Initiate Your Window Scope & Technical Submittals
Submit your project architectural drawings, structural specifications, or window schedules. Our engineering team will review your scope, provide energy compliance analysis, and issue a direct factory quote within 48 hours.
